BF08 Electromagnetic
MINI SELECTIVE WAVE SOLDERING MACHINE
Stable peak height
Maintenance free, minimal tin slag
Good sealing performance
Low nitrogen consumption
No wear and tear, long lifespan
Lower usage cost
Larger pumping flow,
suitable for welding large PCB
boards or dense components
SELF-DEVELOPED ELECTROMAGNETIC PUMP WITH STABLE TIN FLOW

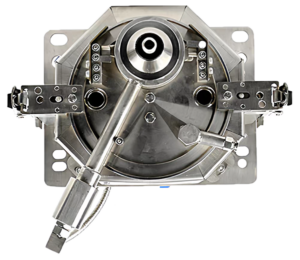

Non moving parts electromagnetic pump tin furnace
Non moving parts have no contact with molten solder, providing better sealing. Compared to mechanical pumps, there is less tin slag and a higher flow rate.
High quality nitrogen ring with nitrogen heating
300W nitrogen heating rod for rapid heating of nitrogen gas

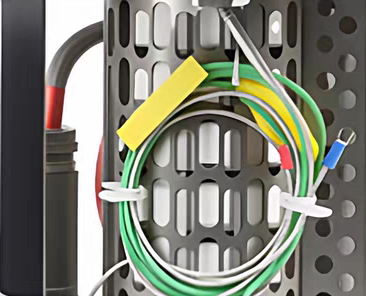

High-temperature coil

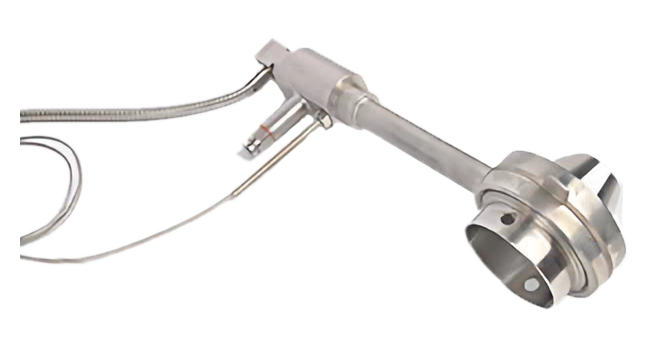

Nitrogen valve

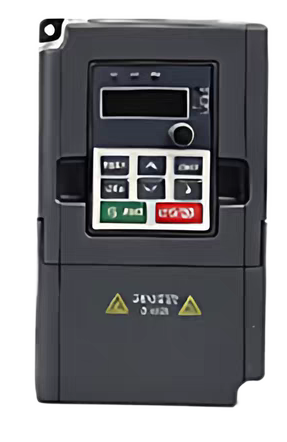

Specialized frequency converter

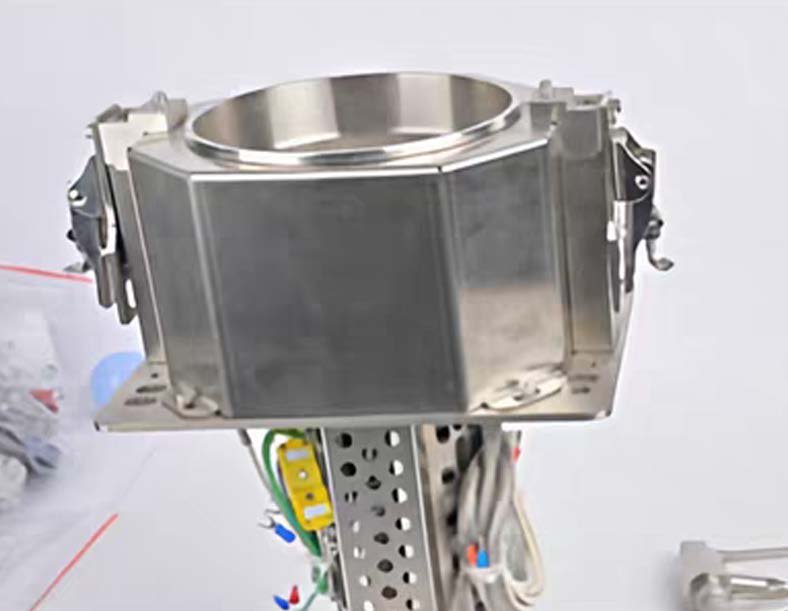

16KG solder pot

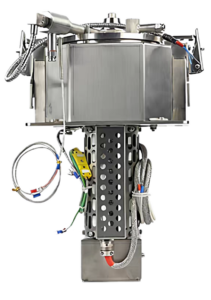

Mini Selective Wave Soldering BF08 Details
Mini Selective wave soldering machine BF08 data sheet
Technical parameters of electromagnetic pump coil
| Rated Voltage | 3X25V | Rated Current | 3X11A | Melted tin height by pump | 25mm (melted tin 200-250℃) | Dimensions | 85x168mm |
| Rated power | 400W | Insulation class | N/A | Working temp. | 400℃(Max) | Weight | 6kg |
| Protection level | IP57 | Cooling method | By air | Working medium | Tin, Pb, Zn, etc | Flux spary | Point-to-point precise spraying by injection valve |
Technical parameters of electromagnetic solder pot
| Pot heating coil | 1000W | Flow channel heating coil | 180W | Nitrogen heating rod | 300W |
Technical parameters of electromagnetic solder pot
| Input Voltage | 25V | Input Current | 7-11A | Work Environment | -40-85℃ |
| Calibration | Default | Protocol | MOD BUS/CAN OPEN and customized agreement | ||
| Overload protection | Overvoltage, undervoltage, overcurrent, short circuit | ||||
| Control Interface | RS485/CAN, IO-LINK (optional) | ||||
