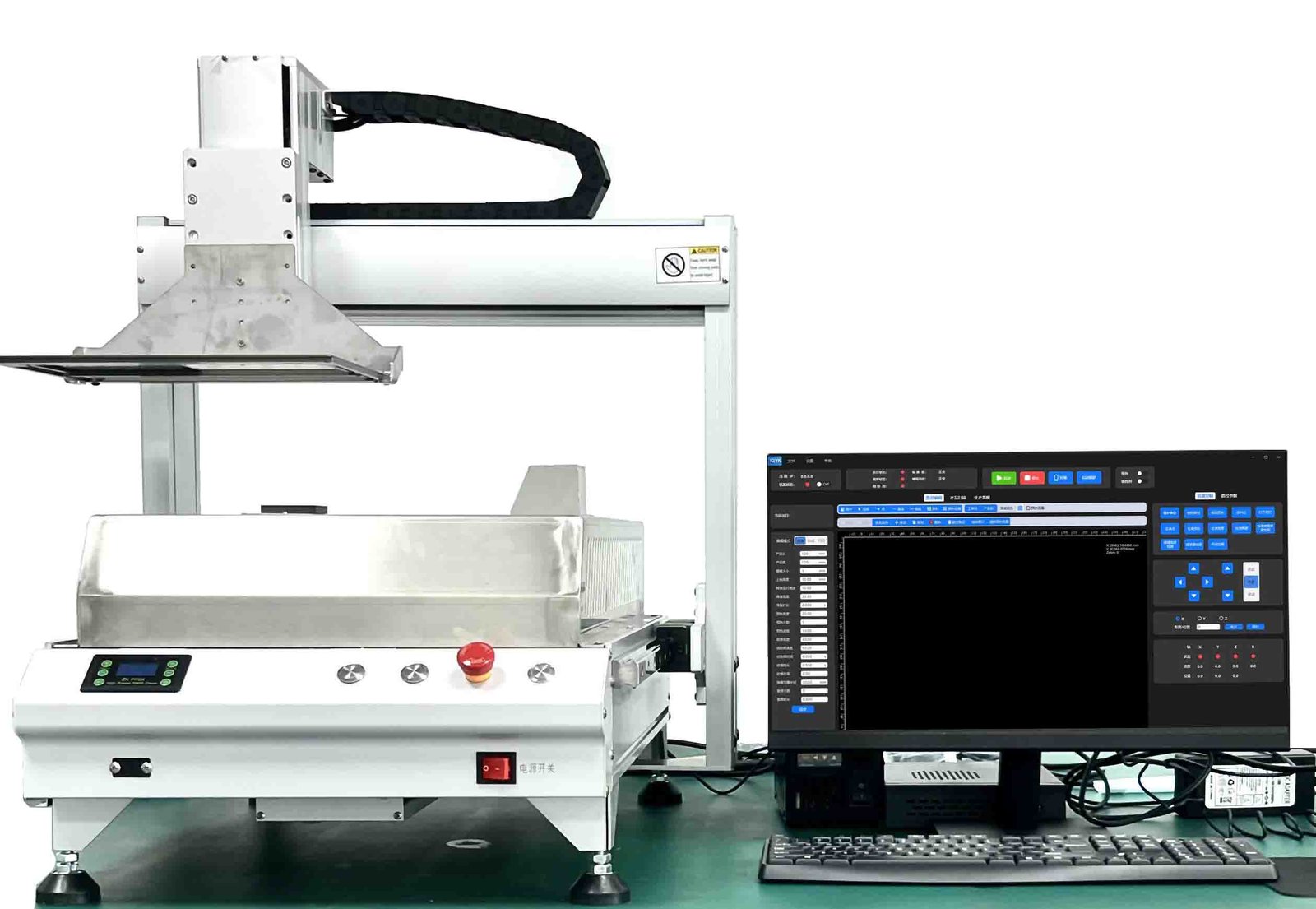

Desktop Selective Wave Soldering
Packing details
- The Platform
- Wave Soldering Furnace
- Control Host
- Control Line and HDMI cable
- Spoons and Flux Tank
- Monitor and host
- 24V power supply
- Flux spraying valve module
- Visual scanning module
Advantages
This desktop selective wave soldering machine controls programming through an industrial computer and quickly inputs PCB board data into the computer through visual scanning.
Rapid programming via Point, Line, Poly line for welding path and flux spary path. This design ensures quick setup and simple operation.
Rapid programming via Point, Line, Poly line for welding path and flux spary path. This design ensures quick setup and simple operation.

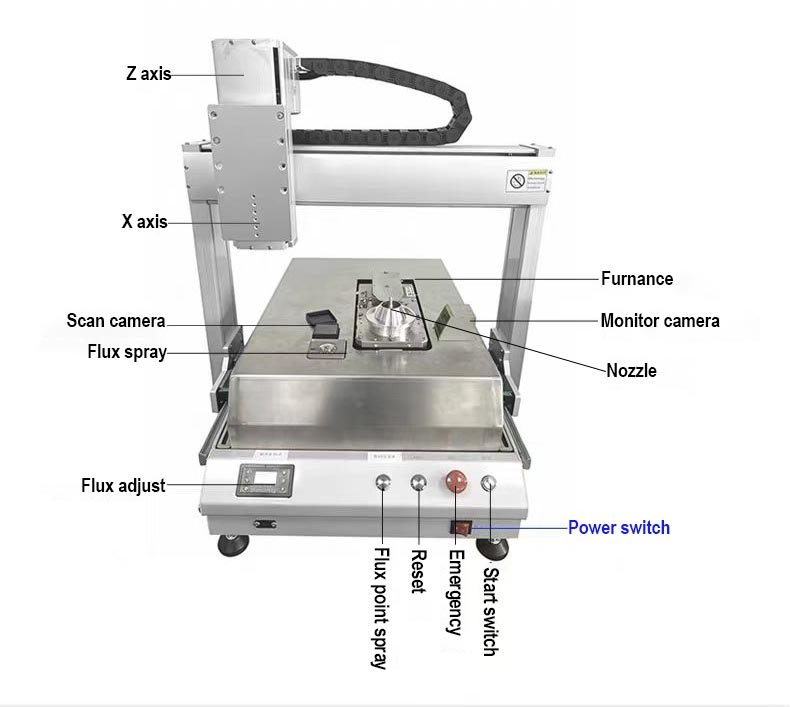

Hardware modules: motion board module, high-definition scanning camera, monitoring camera
Functional modules: path editing, parameter editing, production related, calibration functions
Functional modules: path editing, parameter editing, production related, calibration functions
Data sheet
| Voltage: | AC 220V | Power | 1500W |
| Tin Capacity: | 5kg (mini 3kg) | Warm-up Time | 30 minutes |
| Temp. Control Mode: | PID temperature control | Temp. Range | Room temp.~450℃ |
| Drive Mode: | Mechanical pump | Material: | Stainless steel |
| Furnace Size | 280*156*180mm | Warranty | 1 Year |
| Platform Size | 700*620*775(mm) | Track Movement Range | 400*400*100(mm) |
| Universal Fixture Size | 300*250(mm) | Max. Soldering Area | 250x200mm |
| Control Method | Motion control system+ computer control | Programming Method | Visual scanning input, computer programming |
| Flux Spray | Precise spraying with line spray valve | Nitrogen Demand (if need) | Nitrogen content 99.999, 1 cubic meter per hour |
| Net Weight | 60KG | Gross Weight | 113kg |
